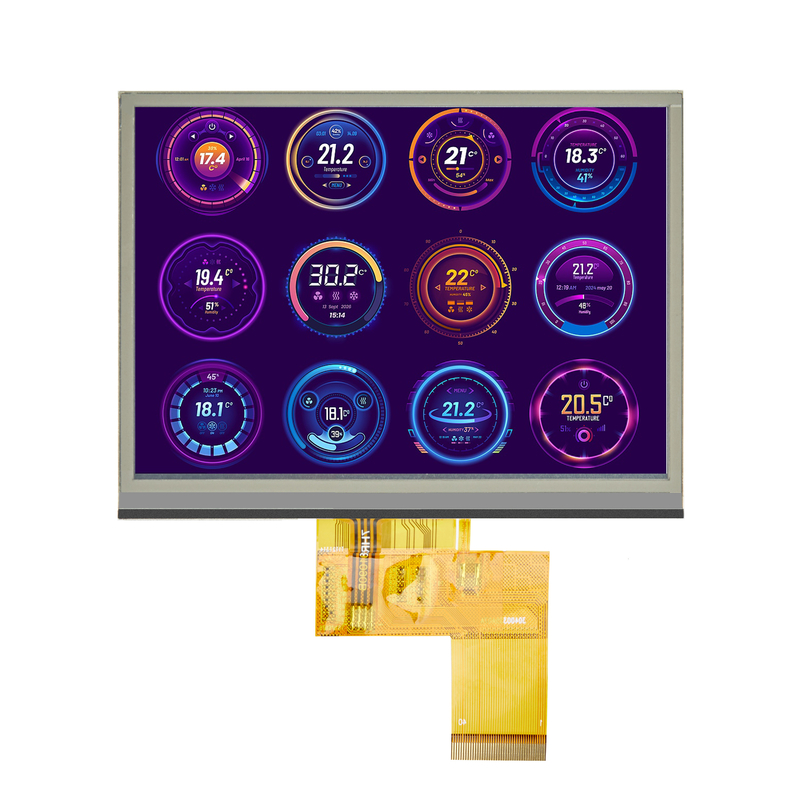

Name: Custom 1000 Nits 7 Inch Medical Grade TFT Screen High Resolution LCD Panel for Medical Equipment
Brand: HongKong Guanke Industrial Limited
SKU: Fs-tft
Price: 3.10 USD
Availability: InStock

Do domu > produkty > Moduł TFT LCD >

Custom 1000 Nits 7 Inch Medical Grade TFT Screen High Resolution LCD Panel for Medical Equipment

7 inch medical TFT LCD screen

1000 nits high brightness LCD panel

medical grade TFT display module

Miejsce pochodzenia:

Dongguan, Chiny

Nazwa handlowa:

Fangsheng

Orzecznictwo:

ISO9001:2015,IATF16949,RoHS,Reach,etc

Numer modelu:

Fs-tft

Skontaktuj się z nami

Poproś o wycenę

Custom 1000 Nits 7 Inch Medical Grade TFT Screen High Resolution LCD Panel for Medical Equipment

Szczegóły produktu

Nazwa produktu:

Niestandardowe 1000 nity 7 -calowe klasa medyczna ekran TFT Wysoka rozdzielczość LCD dla sprzętu med

Rozmiar:

7 cali （niestandardowy）

Interfejs:

SPI/RGB/MIPI/LVDS itp.

Rezolucja:

1024x600 （Custom）

Zwyczaj:

PFC, CTP, okładka itp.

Zastosowanie:

Inteligentne urządzenia medyczne Smart Home itp.

IC kierowcy:

ILI9806E-2C,ST5091+ST5625,itp.

Podkreślić:

7 inch medical TFT LCD screen

1000 nits high brightness LCD panel

medical grade TFT display module

Warunki płatności i wysyłki

Minimalne zamówienie

500

Cena

$0.1-$8

Szczegóły pakowania

Bubble Bag + Blister + Foam Box + karton

Czas dostawy

3 ~ 5 dni roboczych

Zasady płatności

L/C, T/T, D/A, D/P, Western Union, PayPal

Możliwość Supply

200 tys. Zestaw / miesiąc

Produkty pokrewne

OEM ODM Support Medical Grade TFT Screen 5 Inch 7 Inch 10.1 Inch IPS TFT Screen with High Resolution

Najlepszą cenę

Custom 0.96-10.1 Inch High brightness LCD module MCU LVDS Interface Industrial TFT display

Najlepszą cenę

Custom 7 Inch Automotive LCD Panel with CTP/RTP Car Dashboard LCD Module High Brightness IPS TFT screen

Najlepszą cenę

Wideo

Moduł wyświetlacza LCD Ips 1,3 cala 320 * 320 punktów dla inteligentnego zegarka / zabawki dla dzieci

Najlepszą cenę

Skontaktuj się z nami

+86 136 3170 3190

fssales03@fsdzlcd.com

86-769-2270-5825

Skontaktuj się teraz

Opis produktu

Custom 1000 Nits 7 Inch Medical Grade TFT Screen High Resolution LCD Panel for Medical Equipment

Product Specifications

Attribute	Value
Product Name	Custom 1000 Nits 7 Inch Medical Grade TFT Screen High Resolution LCD Panel for Medical Equipment
Size	7 inch (Custom)
Interface	SPI/RGB/MIPI/LVDS, etc.
Resolution	1024x600 (Custom)
Custom	PFC, CTP, Cover glass, etc.
Application	Industrial Control Medical Devices Smart Home, etc.
Driver IC	ILI9806E-2C, ST5091+ST5625, etc.

Product Description

TFT LCD modules are widely adopted in medical devices due to their clear image quality and reliable performance. They enable doctors and patients to view accurate medical data such as heart rate, blood pressure, or imaging results. High-brightness TFT LCD panels are especially suitable for operating rooms and outdoor medical equipment, where visibility is critical.

With customizable sizes, interfaces, and resolutions, TFT LCDs can be integrated into ultrasound systems, portable diagnostic tools, patient monitors, and infusion pumps. Their fast response and durability make them a preferred choice for modern medical technology.

Technical Parameters

Parameter	Value
Resolution	1024x600
Interface	LVDS
Model	EK73215 & EK79001
Type	V.A 12H
Touch Panel	No TP
Operating Temperature	-20℃~70℃
Brightness	620 nits
Outline Dimensions (mm)	165.00100.005.80
Active Area (mm)	154.21*85.92
